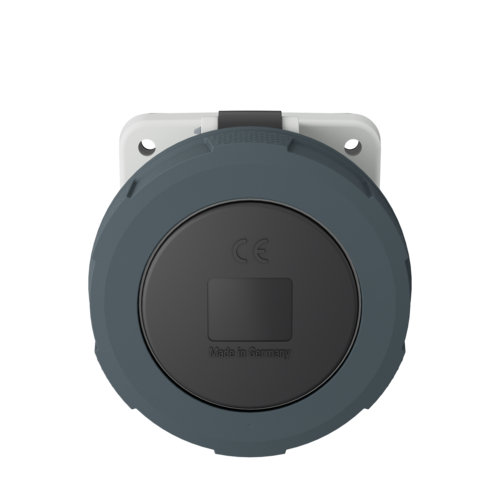

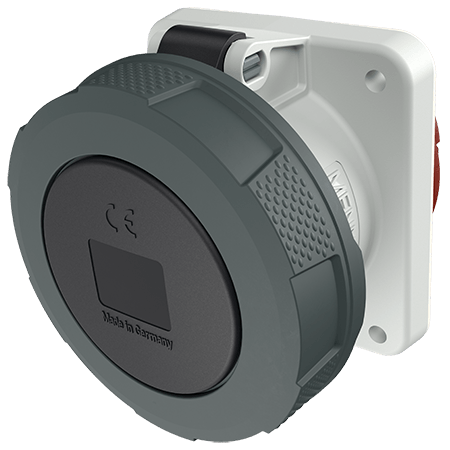

MENNEKES Panel mounted socket 1125A
MENNEKES Panel mounted socket 1125A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket 1125A

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • straight
  • sockets with pilot contact on request
  • Part no.1125A
  • EAN4015394007548
  • Std. Pack. 5

Technical specifications

Panel mounted socket 1125A

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 107x100 mm
Fixing hole 85x77 mm
Weight 604 g
Certifications VDE
EAC
CQC

Datasheets & Downloads

Panel mounted socket 1125A

Product infoPanel mounted socket 1125A PDF, 186 KB
Manufacturer‘s declarationPanel mounted socket 1125A PDF, 37 KB
Dimensional drawing portraitPanel mounted socket 1125A PNG, 94 KB
Dimensional drawing landscape formatPanel mounted socket 1125A PNG, 94 KB

Videos

Panel mounted socket 1125A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted socket 1125A

REACh
RoHS
