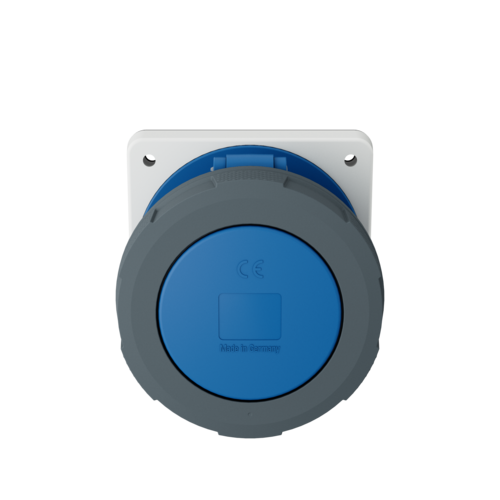

Panel mounted socket 1456

Please accept marketing-cookies to watch this video.

Video varieties
Clock position
  • screw terminals
  • straight
  • products with pilot contact on request
  • Part no.1456
  • EAN4015394011088
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1456

Ampere 125 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Flange 130x130 mm
Fixing hole 104x104 mm
Weight 1135 g
Declaration of Conformity VDE
