Show all Panel mounted sockets
/
Show all Panel mounted socket

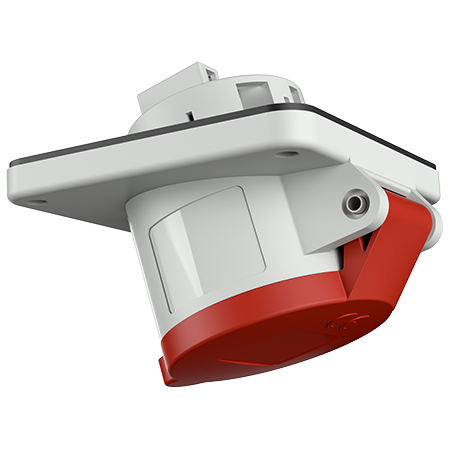

Panel mounted socket 1282
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
Clock position
6 h
9 h
screw terminals
for horizontal installation
15° inclination
Part no.
1282
EAN
4015394009214
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 1282
Ampere
16 A
Poles
4 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
15 °
Weight
155 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 1282
Product info
Panel mounted socket 1282
PDF, 202 KB
CAD data STP
Panel mounted socket 1282
ZIP, 139 KB
CAD data 3D DWG
Panel mounted socket 1282
ZIP, 463 KB
Mounting instructions
Panel mounted socket 1282
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 1282
PNG, 101 KB
Dimensional drawing landscape format
Panel mounted socket 1282
PNG, 101 KB
Directives
Panel mounted socket 1282
REACh
RoHS
