Show all Panel mounted sockets
/
Show all Panel mounted socket

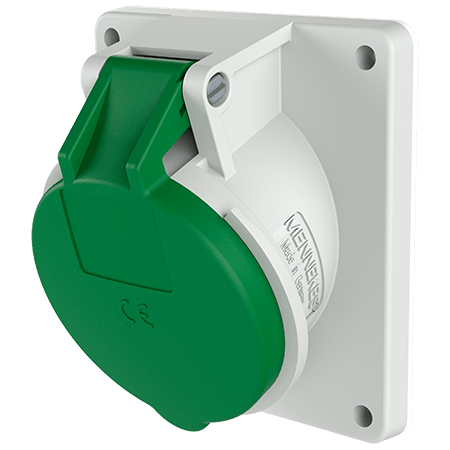

Panel mounted socket 1469
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
20° inclination
Part no.
1469
EAN
4015394011262
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 1469
Ampere
16 A
Poles
4 p
Voltage
50-500 V
Clock position
10 h
Hertz
100-300 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
183 g
Certifications
VDE
Datasheets & Downloads
Panel mounted socket 1469
Product info
Panel mounted socket 1469
PDF, 129 KB
Mounting instructions
Panel mounted socket 1469
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 1469
PNG, 49 KB
Dimensional drawing landscape format
Panel mounted socket 1469
PNG, 49 KB
Directives
Panel mounted socket 1469
REACh
RoHS
