Show all Panel mounted sockets
/
Show all Panel mounted socket

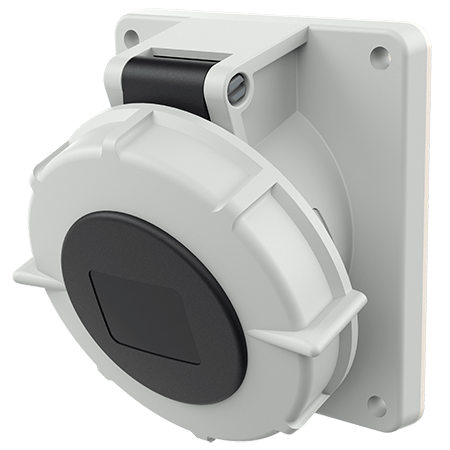

Panel mounted socket 1480
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
20° inclination
Part no.
1480
EAN
4015394011392
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 1480
Ampere
16 A
Poles
4 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
203 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 1480
Product info
Panel mounted socket 1480
PDF, 171 KB
Mounting instructions
Panel mounted socket 1480
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 1480
PNG, 99 KB
Dimensional drawing landscape format
Panel mounted socket 1480
PNG, 100 KB
Directives
Panel mounted socket 1480
REACh
RoHS
