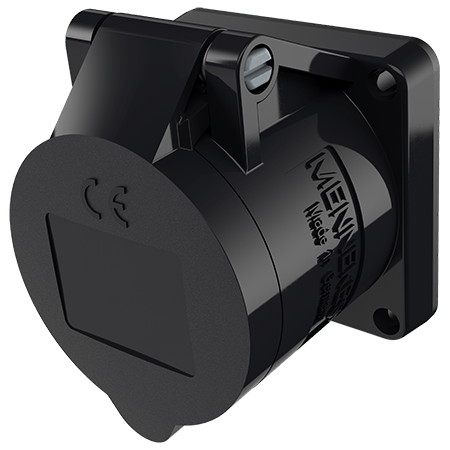

MENNEKES Panel mounted socket 1629ZC

MENNEKES Panel mounted socket 1629ZC images3d

Panel mounted socket 1629ZC

Ampere 16 A

Poles

Voltage

Clock position

screw terminals

straight

Part no.1629ZC
EAN4015394206422
Std. Pack. 10

Technical specifications

Panel mounted socket 1629ZC

Ampere	16 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	55x55 mm
Fixing hole	45x45 mm
Weight	119 g
Certifications	EAC

Dimensional drawing landscape format

Datasheets & Downloads

Panel mounted socket 1629ZC

Product infoPanel mounted socket 1629ZC PDF, 156 KB

CAD data STPPanel mounted socket 1629ZC ZIP, 924 KB

CAD data 3D DWGPanel mounted socket 1629ZC ZIP, 1 MB

Mounting instructionsPanel mounted socket 1629ZC PDF, 128 KB

Dimensional drawing portraitPanel mounted socket 1629ZC PNG, 76 KB

Dimensional drawing landscape formatPanel mounted socket 1629ZC PNG, 76 KB
