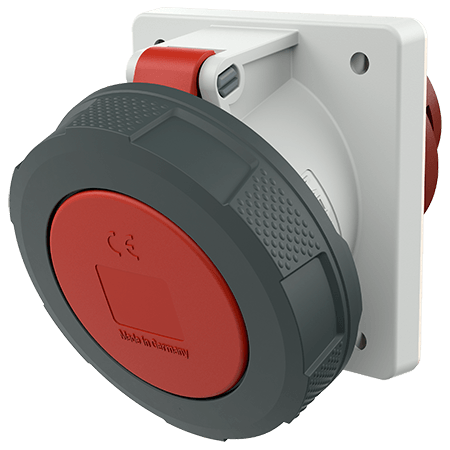

MENNEKES Panel mounted socket 205A

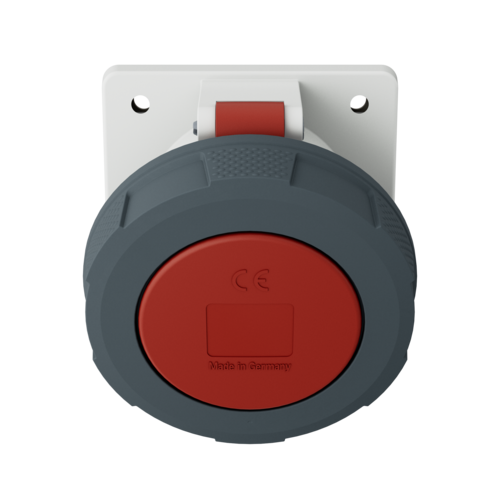

MENNEKES Panel mounted socket 205A images3d

Please accept marketing-cookies to watch this video.

Panel mounted socket 205A

Ampere 63 A 125 A

Poles

Voltage

Clock position

screw terminals
X-CONTACT®

20° inclination
sockets with pilot contact: part no. + index P

Part no.205A
EAN4015394000839
Std. Pack. 5

Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Panel mounted socket 205A

Ampere	63 A
Poles	4 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	X-CONTACT
Protection type	IP67
Flange	110x106 mm
Fixing hole	85x77 mm
Inclination	20 °
Weight	607 g
Certifications	VDE

Dimensional drawing landscape format

Datasheets & Downloads

Panel mounted socket 205A

Product infoPanel mounted socket 205A PDF, 183 KB

Manufacturer‘s declarationPanel mounted socket 205A PDF, 37 KB

CAD data STPPanel mounted socket 205A ZIP, 1 MB

CAD data 3D DWGPanel mounted socket 205A ZIP, 3 MB

Dimensional drawing portraitPanel mounted socket 205A PNG, 108 KB

Dimensional drawing landscape formatPanel mounted socket 205A PNG, 109 KB

Videos

Panel mounted socket 205A

Please accept marketing-cookies to watch this video.

Directives

Panel mounted socket 205A
