Show all Low voltages
/
Show all Panel mounted socket

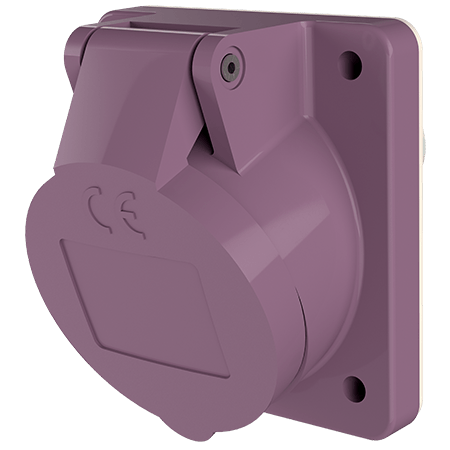

Panel mounted socket 2870
Ampere
16 A
32 A
Poles
2 p
3 p
Voltage
20-25 V
20-25, 40-50 V
40-50 V
50 V
screw terminals
20° inclination
Part no.
2870
EAN
4015394016830
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 2870
Ampere
32 A
Poles
3 p
Voltage
20-25 V
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
68x62 mm
Fixing hole
53x47 mm
Inclination
20 °
Weight
143 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 2870
Product info
Panel mounted socket 2870
PDF, 181 KB
CAD data STP
Panel mounted socket 2870
ZIP, 199 KB
CAD data 3D DWG
Panel mounted socket 2870
ZIP, 538 KB
Dimensional drawing portrait
Panel mounted socket 2870
PNG, 90 KB
Dimensional drawing landscape format
Panel mounted socket 2870
PNG, 90 KB
Directives
Panel mounted socket 2870
REACh
RoHS
