MENNEKES Panel mounted socket 3036
MENNEKES Panel mounted socket 3036 images3d

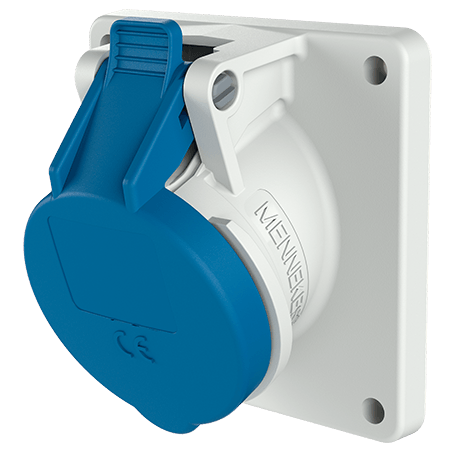

Panel mounted socket 3036

Ampere 16 A 32 A
  • screw terminals
  • uniform flange dimensions
  • 20° inclination
  • sockets are designed for adding an auxiliary contact switch
  • Part no.3036
  • EAN4015394202622
  • Std. Pack. 10

Technical specifications

Panel mounted socket 3036

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 148 g
Certifications CQC
CB Zertifikat
VDE

Datasheets & Downloads

Panel mounted socket 3036

Product infoPanel mounted socket 3036 PDF, 137 KB
CAD data STPPanel mounted socket 3036 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket 3036 ZIP, 2 MB
Mounting instructionsPanel mounted socket 3036 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 3036 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted socket 3036 PNG, 52 KB

Directives

Panel mounted socket 3036

REACh
RoHS
