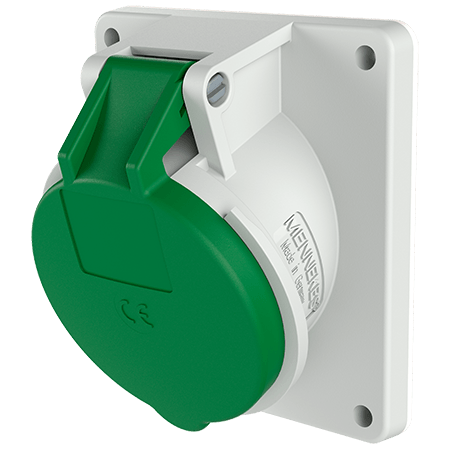

MENNEKES Panel mounted socket 3202

Panel mounted socket 3202

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.3202
  • EAN4015394018100
  • Std. Pack. 10

Technical specifications

Panel mounted socket 3202

Ampere 32 A
Poles 3 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 236 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 3202

Product infoPanel mounted socket 3202 PDF, 129 KB
Manufacturer‘s declarationPanel mounted socket 3202 PDF, 37 KB
Mounting instructionsPanel mounted socket 3202 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 3202 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted socket 3202 PNG, 49 KB

Directives

Panel mounted socket 3202

REACh
RoHS
