Show all 7 pole
/
Show all Panel mounted socket

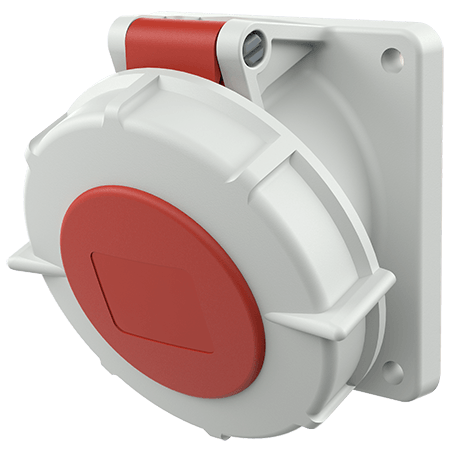

Panel mounted socket 3243
Ampere
16 A
32 A
Poles
7 p
Voltage
400 V
Clock position
6 h
screw terminals
highly heat resistant contact carrier
nickel plated contacts
uniform fixing hole spacing
suitable for through wiring
20° inclination
sockets are designed for adding an auxiliary contact switch
Part no.
3243
EAN
4015394220541
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 3243
Ampere
32 A
Poles
7 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
20 °
Weight
374 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 3243
Product info
Panel mounted socket 3243
PDF, 159 KB
CAD data STP
Panel mounted socket 3243
ZIP, 1 MB
CAD data 3D DWG
Panel mounted socket 3243
ZIP, 3 MB
Mounting instructions
Panel mounted socket 3243
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 3243
PNG, 100 KB
Dimensional drawing landscape format
Panel mounted socket 3243
PNG, 100 KB
Directives
Panel mounted socket 3243
REACh
RoHS
