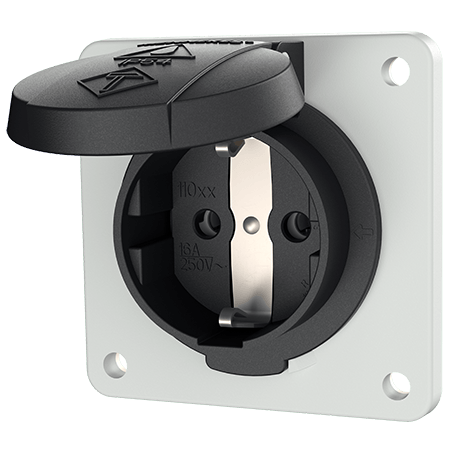

MENNEKES Panel mounted socket SCHUKO® 11012F
MENNEKES Panel mounted socket SCHUKO® 11012F images3d

Panel mounted socket SCHUKO® 11012F

Ampere 16 A
Poles
Voltage
  • for stationary use
  • with hinged lid
  • also suitable for cable ducts and flush mounted installation boxes
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11012F
  • EAN4015394259176
  • Std. Pack. 20

Technical specifications

Panel mounted socket SCHUKO® 11012F

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 60 g
Certifications VDE
EAC

Datasheets & Downloads

Panel mounted socket SCHUKO® 11012F

Product infoPanel mounted socket SCHUKO® 11012F PDF, 160 KB
Dimensional drawing portraitPanel mounted socket SCHUKO® 11012F PNG, 26 KB
Dimensional drawing landscape formatPanel mounted socket SCHUKO® 11012F PNG, 44 KB

Directives

Panel mounted socket SCHUKO® 11012F

REACh
RoHS

Appropriate accessories

Panel mounted socket SCHUKO® 11012F

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

more
MENNEKES Fixing frame 19267000

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted sockets

more
