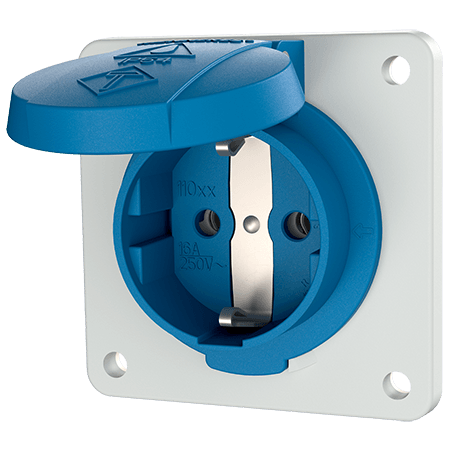

MENNEKES Panel mounted socket SCHUKO® 11031F
MENNEKES Panel mounted socket SCHUKO® 11031F images3d

Panel mounted socket SCHUKO® 11031F

Ampere 16 A
Poles
Voltage
  • for stationary use
  • with hinged lid
  • also suitable for cable ducts and flush mounted installation boxes
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11031F
  • EAN4015394259145
  • Std. Pack. 20

Technical specifications

Panel mounted socket SCHUKO® 11031F

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 60 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket SCHUKO® 11031F

Product infoPanel mounted socket SCHUKO® 11031F PDF, 112 KB
CAD data STPPanel mounted socket SCHUKO® 11031F ZIP, 760 KB
CAD data 3D DWGPanel mounted socket SCHUKO® 11031F ZIP, 1 MB
Dimensional drawing portraitPanel mounted socket SCHUKO® 11031F PNG, 26 KB
Dimensional drawing landscape formatPanel mounted socket SCHUKO® 11031F PNG, 44 KB

Directives

Panel mounted socket SCHUKO® 11031F

REACh
RoHS

Appropriate accessories

Panel mounted socket SCHUKO® 11031F

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

more
MENNEKES Fixing frame 19267000

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted sockets

more
