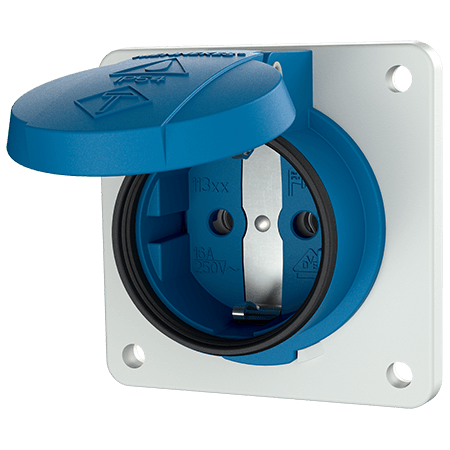

MENNEKES Panel mounted socket SCHUKO® 11331F
MENNEKES Panel mounted socket SCHUKO® 11331F images3d

Panel mounted socket SCHUKO® 11331F

Ampere 16 A
Poles
Voltage
  • for portable use
  • with front gasket
  • with hinged lid
  • for easy installation in a cable duct or an enclosure
  • 3 screw terminals as connecting terminals 1.5 – 2.5 mm²
  • Part no.11331F
  • EAN4015394259305
  • Std. Pack. 20

Technical specifications

Panel mounted socket SCHUKO® 11331F

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 80 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket SCHUKO® 11331F

Product infoPanel mounted socket SCHUKO® 11331F PDF, 106 KB
CAD data STPPanel mounted socket SCHUKO® 11331F ZIP, 887 KB
CAD data 3D DWGPanel mounted socket SCHUKO® 11331F ZIP, 1 MB
Dimensional drawing portraitPanel mounted socket SCHUKO® 11331F PNG, 26 KB
Dimensional drawing landscape formatPanel mounted socket SCHUKO® 11331F PNG, 43 KB

Directives

Panel mounted socket SCHUKO® 11331F

REACh
RoHS

Appropriate accessories

Panel mounted socket SCHUKO® 11331F

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

more
MENNEKES Fixing frame 19267000

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted sockets
