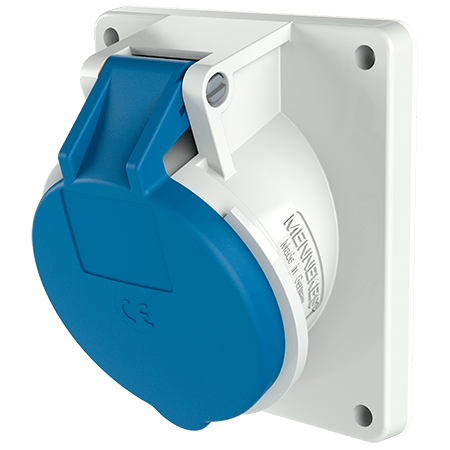

MENNEKES Panel mounted socket with TwinCONTACT 1734

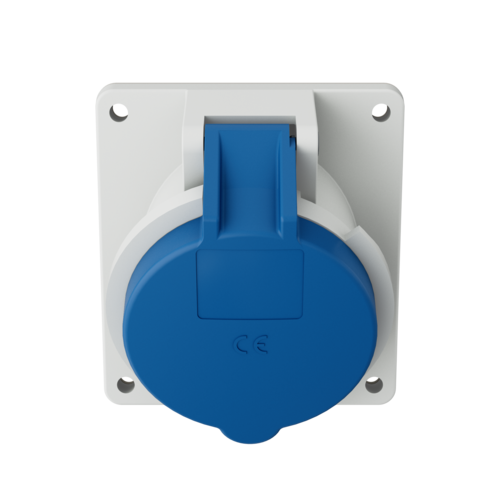

MENNEKES Panel mounted socket with TwinCONTACT 1734 images3d

Panel mounted socket with TwinCONTACT 1734

Ampere 16 A 32 A
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • sockets are designed for adding an auxiliary contact switch
  • Part no.1734
  • EAN4015394214762
  • Std. Pack. 10
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Read more

Technical specifications

Panel mounted socket with TwinCONTACT 1734

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 210 g
Certifications CQC
VDE
CB Zertifikat

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1734

Product infoPanel mounted socket with TwinCONTACT 1734 PDF, 150 KB
CAD data STPPanel mounted socket with TwinCONTACT 1734 ZIP, 2 MB
CAD data 3D DWGPanel mounted socket with TwinCONTACT 1734 ZIP, 3 MB
Mounting instructionsPanel mounted socket with TwinCONTACT 1734 PDF, 282 KB
Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1734 PNG, 94 KB
Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1734 PNG, 95 KB

Directives

Panel mounted socket with TwinCONTACT 1734

REACh
RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1734

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted sockets 16A and 32A
