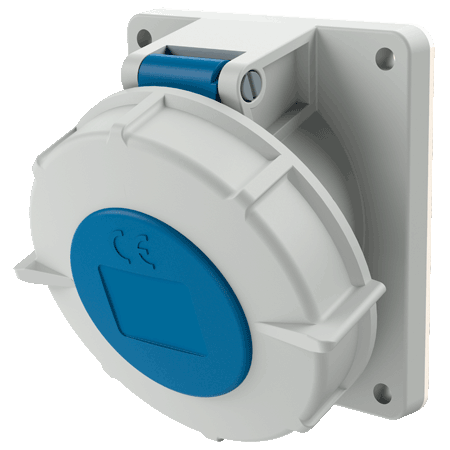

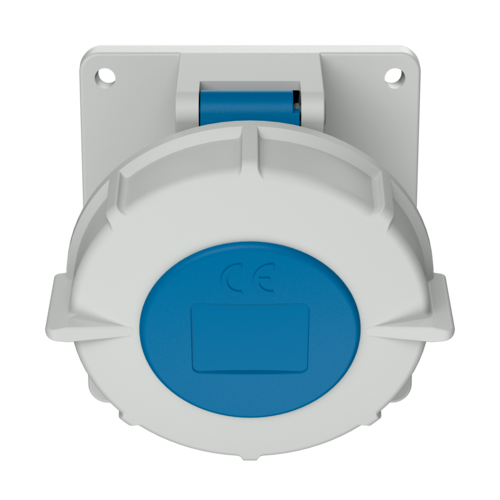

MENNEKES Panel mounted socket with TwinCONTACT 1802
MENNEKES Panel mounted socket with TwinCONTACT 1802 images3d

Panel mounted socket with TwinCONTACT 1802

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • 20° inclination
  • sockets are designed for adding an auxiliary contact switch
  • Part no.1802
  • EAN4015394215103
  • Std. Pack. 10
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Read more

Technical specifications

Panel mounted socket with TwinCONTACT 1802

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 262 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1802

Product infoPanel mounted socket with TwinCONTACT 1802 PDF, 122 KB
Manufacturer‘s declarationPanel mounted socket with TwinCONTACT 1802 PDF, 45 KB
CAD data STPPanel mounted socket with TwinCONTACT 1802 ZIP, 2 MB
CAD data 3D DWGPanel mounted socket with TwinCONTACT 1802 ZIP, 5 MB
Mounting instructionsPanel mounted socket with TwinCONTACT 1802 PDF, 282 KB
Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1802 PNG, 97 KB
Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1802 PNG, 98 KB

Directives

Panel mounted socket with TwinCONTACT 1802

REACh
RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1802

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted sockets 16A and 32A
