Show all Standard plugs
/
Show all Plug AM-TOP®

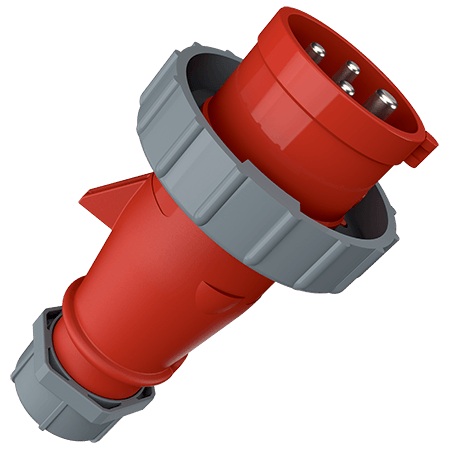

Plug AM-TOP® 20709
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
single part body
highly heat resistant contact carrier
nickel plated contacts
cable gland and sealing
strain relief and protection against kinking
Part no.
20709
EAN
4015394039327
Std. Pack.
10
Add to shopping basket
Technical specifications
Plug AM-TOP® 20709
Ampere
32 A
Poles
4 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
highly heat resistant contact carrier
nickel plated contacts
Protection type
IP67
Weight
316 g
Certifications
EAC
Datasheets & Downloads
Plug AM-TOP® 20709
Product info
Plug AM-TOP® 20709
PDF, 123 KB
Mounting instructions
Plug AM-TOP® 20709
PDF, 2 MB
Dimensional drawing portrait
Plug AM-TOP® 20709
PNG, 90 KB
Dimensional drawing landscape format
Plug AM-TOP® 20709
PNG, 91 KB
Directives
Plug AM-TOP® 20709
REACh
RoHS
