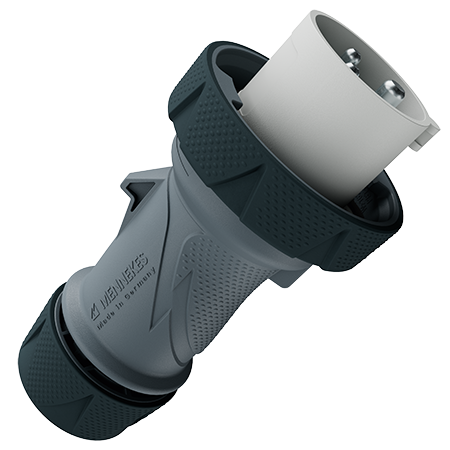

Plug PowerTOP® Xtra R with ErgoCONTACT 13676
Robust technology for harsh environmental conditions - the PowerTOP® Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP® Xtra family comply with protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high-pressure cleaning.
- screw connection technology ErgoCONTACT
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip areas
- rubberised cable gland with sealing
- rubberised bayonet ring
- sealed against dust, temporary submersion and high
- pressure cleaning
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
Technical specifications
Plug PowerTOP® Xtra R with ErgoCONTACT 13676
| Ampere | 32 A |
|---|---|
| Poles | 3 p |
| Voltage | 50-250 V |
| Clock position | 3 h |
| Hertz | (DC) |
| Connection technology | Screw terminals, ErgoCONTACT® |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP67 / IP69 |
| Weight | 360 g |
