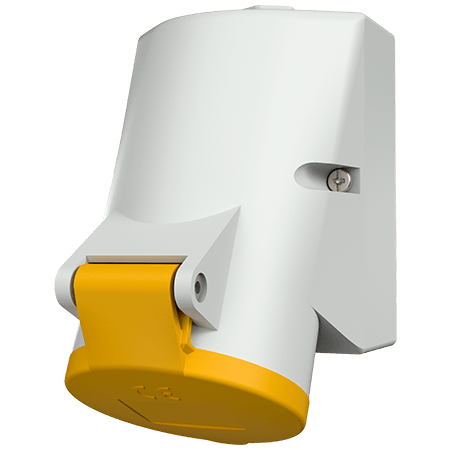

MENNEKES Wall mounted socket 103
MENNEKES Wall mounted socket 103 images3d

Wall mounted socket 103

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • 4 p and 5 p sockets the enclosure can be turned 180°
  • Part no.103
  • EAN4015394000419
  • Std. Pack. 10

Technical specifications

Wall mounted socket 103

Ampere 16 A
Poles 4 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 236 g

Directives

Wall mounted socket 103
