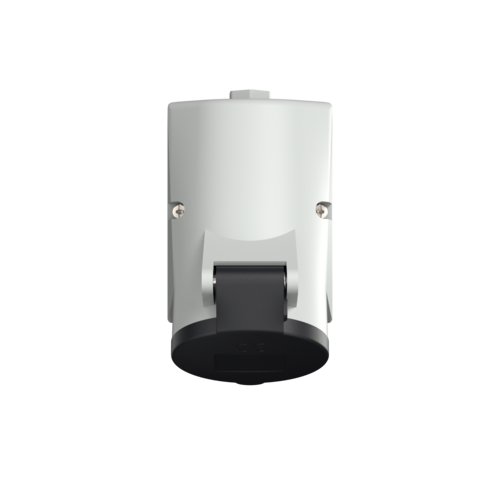

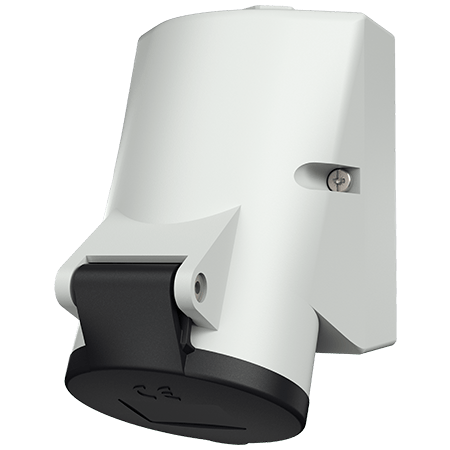

MENNEKES Wall mounted socket 106
MENNEKES Wall mounted socket 106 images3d

Wall mounted socket 106

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • 4 p and 5 p sockets the enclosure can be turned 180°
  • Part no.106
  • EAN4015394000440
  • Std. Pack. 10

Technical specifications

Wall mounted socket 106

Ampere 16 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 236 g
Certifications EAC
CQC

Datasheets & Downloads

Wall mounted socket 106

Product infoWall mounted socket 106 PDF, 148 KB
Mounting instructionsWall mounted socket 106 PDF, 128 KB
Dimensional drawing portraitWall mounted socket 106 PNG, 96 KB
Dimensional drawing landscape formatWall mounted socket 106 PNG, 97 KB

Directives

Wall mounted socket 106

REACh
RoHS
