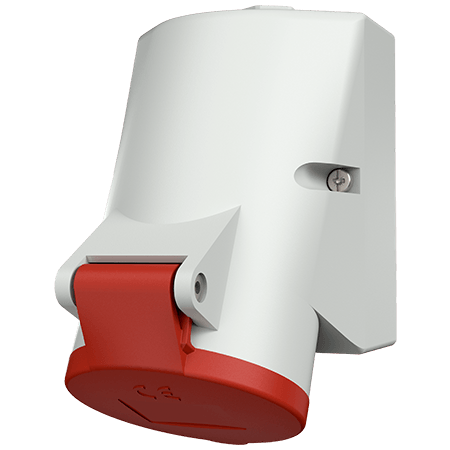

MENNEKES Wall mounted socket 111

Wall mounted socket 111

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • 4 p and 5 p sockets the enclosure can be turned 180°
  • Part no.111
  • EAN4015394000501
  • Std. Pack. 10

Technical specifications

Wall mounted socket 111

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 258 g
Certifications VDE

Datasheets & Downloads

Wall mounted socket 111

Product infoWall mounted socket 111 PDF, 137 KB
CAD data STPWall mounted socket 111 ZIP, 691 KB
CAD data 3D DWGWall mounted socket 111 ZIP, 1 MB
Mounting instructionsWall mounted socket 111 PDF, 128 KB
Dimensional drawing portraitWall mounted socket 111 PNG, 96 KB
Dimensional drawing landscape formatWall mounted socket 111 PNG, 97 KB

Directives

Wall mounted socket 111

REACh
RoHS
