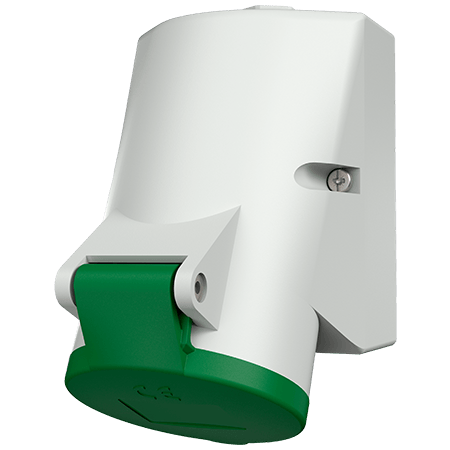

MENNEKES Wall mounted socket 2169

Wall mounted socket 2169

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • 4 p and 5 p sockets the enclosure can be turned 180°
  • Part no.2169
  • EAN4015394013570
  • Std. Pack. 10

Technical specifications

Wall mounted socket 2169

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 186 g
Certifications EAC

Datasheets & Downloads

Wall mounted socket 2169

Product infoWall mounted socket 2169 PDF, 141 KB
Mounting instructionsWall mounted socket 2169 PDF, 128 KB
Dimensional drawing portraitWall mounted socket 2169 PNG, 96 KB
Dimensional drawing landscape formatWall mounted socket 2169 PNG, 97 KB

Directives

Wall mounted socket 2169

REACh
RoHS
