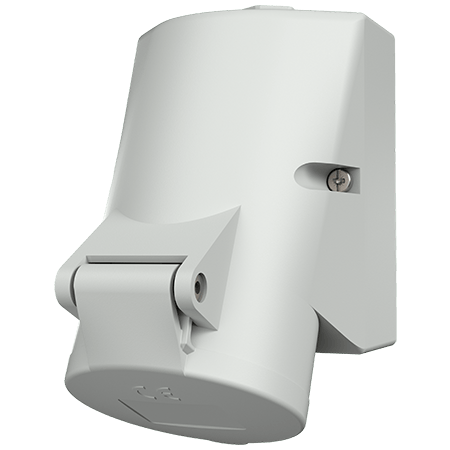

MENNEKES Wall mounted socket 2684

Wall mounted socket 2684

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • enclosure base can be turned 180° (for 5-pole design)
  • Part no.2684
  • EAN4015394016052
  • Std. Pack. 10

Technical specifications

Wall mounted socket 2684

Ampere 16 A
Poles 3 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 180 g
Certifications VDE

Datasheets & Downloads

Wall mounted socket 2684

Product infoWall mounted socket 2684 PDF, 152 KB
Mounting instructionsWall mounted socket 2684 PDF, 128 KB
Dimensional drawing portraitWall mounted socket 2684 PNG, 96 KB
Dimensional drawing landscape formatWall mounted socket 2684 PNG, 97 KB

Directives

Wall mounted socket 2684

REACh
RoHS
