Show all Wall mounted sockets
/
Show all Wall mounted socket

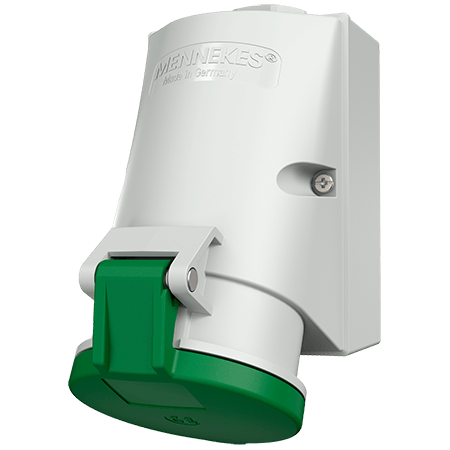

Wall mounted socket 3134
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
internal fixing
one cable entry at top, two blind cable entries (can be cut out) at the bottom
enclosure base can be turned 180°
sockets are designed for adding an auxiliary contact switch
Part no.
3134
EAN
4015394017851
Std. Pack.
10
Add to shopping basket
Technical specifications
Wall mounted socket 3134
Ampere
32 A
Poles
3 p
Voltage
50-500 V
Clock position
2 h
Hertz
300-500 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Weight
335 g
Certifications
EAC
CQC
Datasheets & Downloads
Wall mounted socket 3134
Product info
Wall mounted socket 3134
PDF, 137 KB
Manufacturer‘s declaration
Wall mounted socket 3134
PDF, 38 KB
Mounting instructions
Wall mounted socket 3134
PDF, 128 KB
Dimensional drawing portrait
Wall mounted socket 3134
PNG, 97 KB
Dimensional drawing landscape format
Wall mounted socket 3134
PNG, 98 KB
Directives
Wall mounted socket 3134
REACh
RoHS
