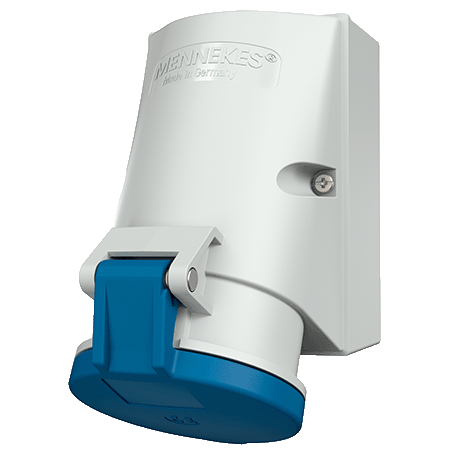

Wall mounted socket 735

Name: Wall mounted socket
Brand: MENNEKES
SKU: 735

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
with highly heat resistant contact carrier
nickel plated contacts
internal fixing

one cable entry at the top, two blind entries (can be cut out) at the bottom
enclosure can be turned through 180°
sockets are designed for adding an auxiliary contact switch

Part no.735
EAN4015394005599
Std. Pack. 10

Technical specifications

Wall mounted socket 735

Ampere	32 A
Poles	7 p
Voltage	230 V
Clock position	9 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	highly heat resistant contact carrier nickel plated contacts
Protection type	IP44
Weight	451 g
Certifications	EAC

Datasheets & Downloads

Wall mounted socket 735

Product infoWall mounted socket 735 PDF, 126 KB

Manufacturer‘s declarationWall mounted socket 735 PDF, 28 KB

Mounting instructionsWall mounted socket 735 PDF, 128 KB

Dimensional drawing portraitWall mounted socket 735 PNG, 97 KB

Dimensional drawing landscape formatWall mounted socket 735 PNG, 98 KB
