MENNEKES Wall mounted socket DUO 5602304G

Please accept marketing-cookies to watch this video.

Wall mounted socket DUO 5602304G

Name: Wall mounted socket DUO
Brand: MENNEKES
SKU: 5602304G

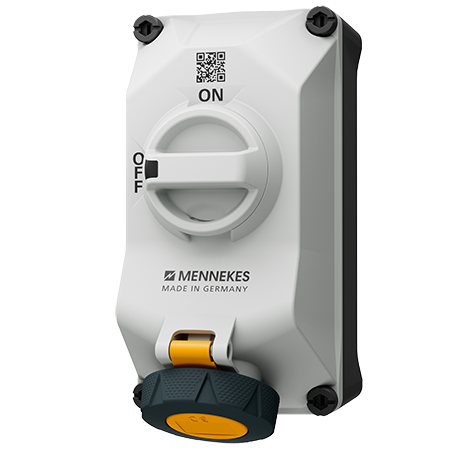

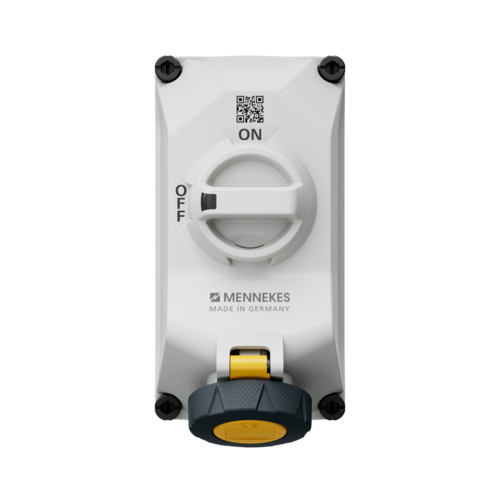

Twice the protection - our DUOi wall mounted socket impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall mounted socket with IP67 / IP69 protection is protected against temporary submersion and high pressure cleaning.

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
pre-wired for installation
X-CONTACT®
switched

mechanical DUO-interlock
3 pole switch
sockets can be padlocked
sealed against dust, temporary submersion and high pressure cleaning

Part no.5602304G
EAN4015394297581
Std. Pack. 1 Qty.

Screw terminals

Standard screw terminals

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted socket DUO 5602304G

Ampere	16 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	X-CONTACT
Protection type	IP67 / IP69
Enclosure material	Plastic
Weight	1305 g
Certifications	CB Zertifikat VDE
