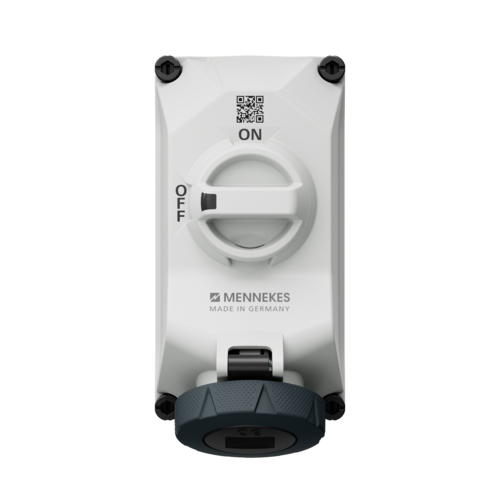

MENNEKES Wall mounted socket DUO 5604407G

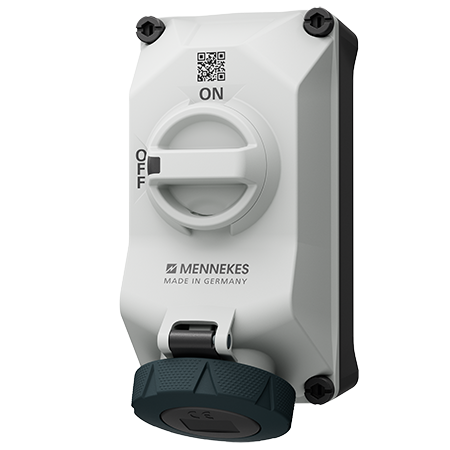

MENNEKES Wall mounted socket DUO 5604407G images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted socket DUO 5604407G

Twice the protection - our DUOi wall mounted socket impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall mounted socket with IP67 / IP69 protection is protected against temporary submersion and high pressure cleaning.
Ampere 16 A 32 A
  • screw terminals
  • pre-wired for installation
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • 3 pole switch
  • sockets can be padlocked
  • sealed against dust, temporary submersion and high pressure cleaning
  • Part no.5604407G
  • EAN4015394297888
  • Std. Pack. 1 Qty.
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted socket DUO 5604407G

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67 / IP69
Enclosure material Plastic
Weight 1455 g
Certifications VDE

Datasheets & Downloads

Wall mounted socket DUO 5604407G

Product infoWall mounted socket DUO 5604407G PDF, 1 MB
Manufacturer‘s declarationWall mounted socket DUO 5604407G PDF, 211 KB
CAD data STPWall mounted socket DUO 5604407G ZIP, 3 MB
CAD data 3D DWGWall mounted socket DUO 5604407G ZIP, 8 MB
Mounting instructionsWall mounted socket DUO 5604407G PDF, 4 MB
Dimensional drawing portraitWall mounted socket DUO 5604407G PNG, 298 KB
Dimensional drawing landscape formatWall mounted socket DUO 5604407G PNG, 312 KB

Videos

Wall mounted socket DUO 5604407G

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted socket DUO 5604407G

REACh
RoHS

Appropriate products

Wall mounted socket DUO 5604407G with IP67 / IP69

MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13628

Plug PowerTOP® Xtra with ErgoCONTACT

Part no. 13628

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 500 V
  • Connection technology: Screw terminals, ErgoCONTACT®
more
MENNEKES Plug PowerTOP® Xtra R with ErgoCONTACT 13655

Plug PowerTOP® Xtra R with ErgoCONTACT

Part no. 13655

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 500 V
  • Connection technology: Screw terminals, ErgoCONTACT®
more
MENNEKES Connector PowerTOP® Xtra with ErgoCONTACT 14628

Connector PowerTOP® Xtra with ErgoCONTACT

Part no. 14628

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 500 V
  • Connection technology: Screw terminals, ErgoCONTACT®
more
MENNEKES Connector PowerTOP® Xtra R with ErgoCONTACT 14655

Connector PowerTOP® Xtra R with ErgoCONTACT

Part no. 14655

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 500 V
  • Connection technology: Screw terminals, ErgoCONTACT®
more
