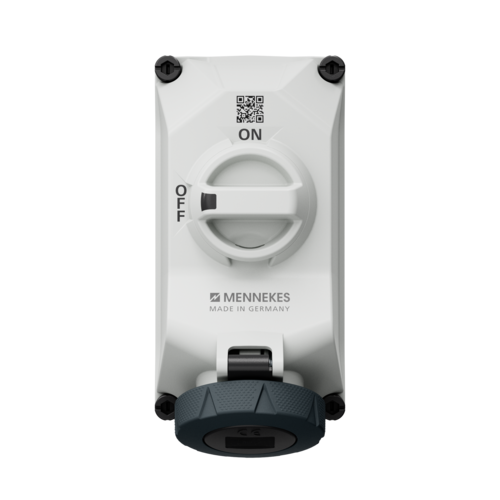

Wall mounted socket DUO R 5702407G
Twice the protection - our DUOi wall mounted socket impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall mounted socket with IP67 / IP69 protection is protected against temporary submersion and high pressure cleaning.
- screw terminals
- pre-wired for installation
- X-CONTACT®
- switched
- mechanical DUO-interlock
- highly heat resistant contact carrier
- nickel plated contacts
- 3 pole switch
- sockets can be padlocked
- sealed against dust, temporary submersion and high pressure cleaning
Technical specifications
Wall mounted socket DUO R 5702407G
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 500 V |
| Clock position | 7 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
nickel plated contacts X-CONTACT highly heat resistant contact carrier |
| Protection type | IP67 / IP69 |
| Enclosure material | Plastic |
| Weight | 1355 g |
