MENNEKES Wall mounted socket with TwinCONTACT 420
MENNEKES Wall mounted socket with TwinCONTACT 420 images3d

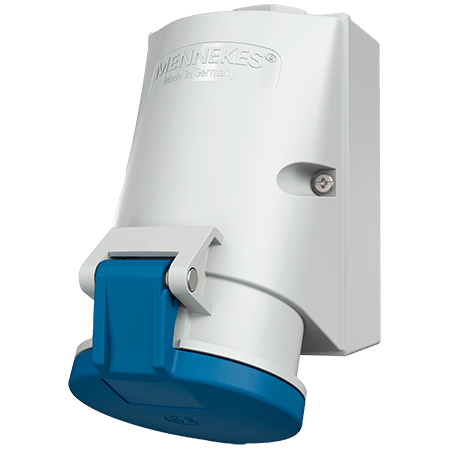

Wall mounted socket with TwinCONTACT 420

The universal CEE socket for trade and industry with freely selectable connection direction.

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • enclosure base can be turned 180°
  • sockets are designed for adding an auxiliary contact switch
  • Part no.420
  • EAN4015394213994
  • Std. Pack. 10
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Read more

Technical specifications

Wall mounted socket with TwinCONTACT 420

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Weight 210 g
Certifications VDE

Datasheets & Downloads

Wall mounted socket with TwinCONTACT 420

Product infoWall mounted socket with TwinCONTACT 420 PDF, 139 KB
Manufacturer‘s declarationWall mounted socket with TwinCONTACT 420 PDF, 43 KB
CAD data STPWall mounted socket with TwinCONTACT 420 ZIP, 707 KB
CAD data 3D DWGWall mounted socket with TwinCONTACT 420 ZIP, 2 MB
Mounting instructionsWall mounted socket with TwinCONTACT 420 PDF, 282 KB
Dimensional drawing portraitWall mounted socket with TwinCONTACT 420 PNG, 97 KB
Dimensional drawing landscape formatWall mounted socket with TwinCONTACT 420 PNG, 98 KB

Directives

Wall mounted socket with TwinCONTACT 420

REACh
RoHS

Appropriate accessories

Wall mounted socket with TwinCONTACT 420

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted sockets 16A and 32A
