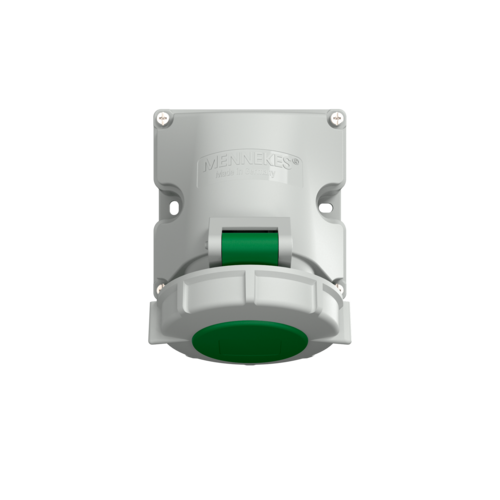

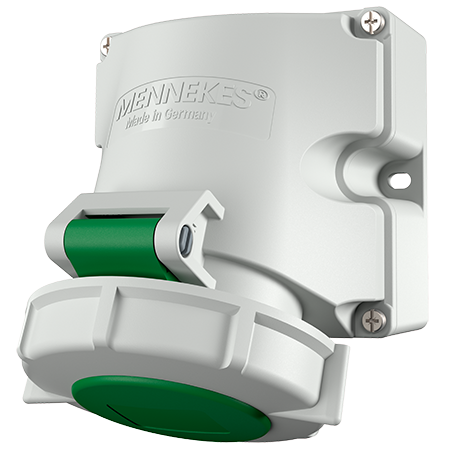

MENNEKES Wall mounted socket with TwinCONTACT 9124
MENNEKES Wall mounted socket with TwinCONTACT 9124 images3d

Wall mounted socket with TwinCONTACT 9124

The waterproof and dustproof CEE wall mounted socket for use in harsh environmental conditions.

Poles
Voltage
Clock position
  • with 2 external fixing points
  • sockets are designed for adding an auxiliary contact switch
  • enclosure base can be turned 180°
  • Part no.9124
  • EAN4015394281146
  • Std. Pack. 5

Technical specifications

Wall mounted socket with TwinCONTACT 9124

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 352 g
Certifications EAC
CQC

Directives
