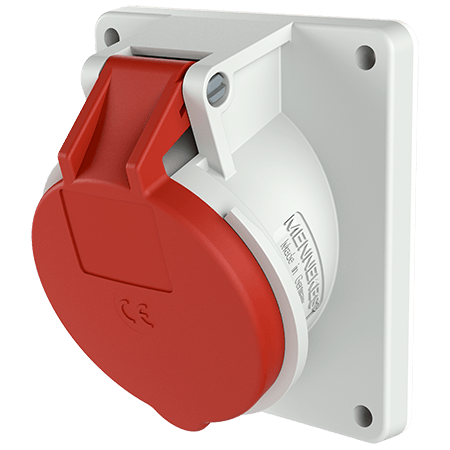

MENNEKES Panel mounted socket 1473
MENNEKES Panel mounted socket 1473 images3d

Panel mounted socket 1473

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1473
  • EAN4015394011309
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1473

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 190 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 1473

Product infoPanel mounted socket 1473 PDF, 124 KB
Manufacturer‘s declarationPanel mounted socket 1473 PDF, 37 KB
CAD data STPPanel mounted socket 1473 ZIP, 968 KB
CAD data 3D DWGPanel mounted socket 1473 ZIP, 2 MB
Mounting instructionsPanel mounted socket 1473 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1473 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted socket 1473 PNG, 49 KB

Directives

Panel mounted socket 1473

REACh
RoHS
