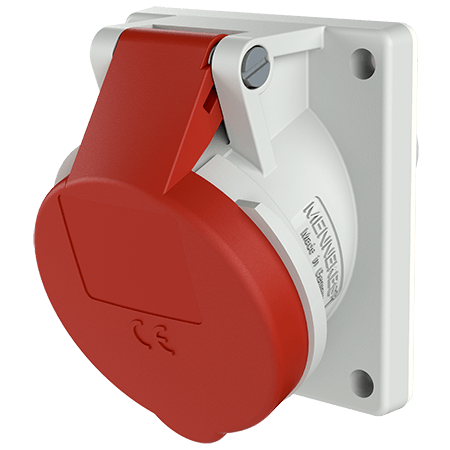

MENNEKES Panel mounted socket 1500

Panel mounted socket 1500

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.1500
  • EAN4015394011620
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1500

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 288 g
Certifications VDE
EAC
CQC

Datasheets & Downloads

Panel mounted socket 1500

Product infoPanel mounted socket 1500 PDF, 155 KB
Manufacturer‘s declarationPanel mounted socket 1500 PDF, 37 KB
CAD data STPPanel mounted socket 1500 ZIP, 879 KB
CAD data 3D DWGPanel mounted socket 1500 ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket 1500 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted socket 1500 PNG, 49 KB

Directives

Panel mounted socket 1500

REACh
RoHS
