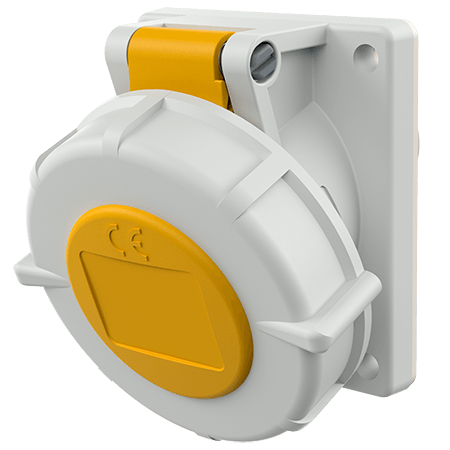

MENNEKES Panel mounted socket 1474

Panel mounted socket 1474

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals

20° inclination

Part no.1474
EAN4015394011323
Std. Pack. 10

Technical specifications

Panel mounted socket 1474

Ampere	16 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Flange	73.5x64 mm
Fixing hole	60x52 mm
Inclination	20 °
Weight	151 g
Certifications	CQC

Dimensional drawing landscape format

Datasheets & Downloads

Panel mounted socket 1474

Product infoPanel mounted socket 1474 PDF, 154 KB

Manufacturer‘s declarationPanel mounted socket 1474 PDF, 37 KB

Mounting instructionsPanel mounted socket 1474 PDF, 128 KB

Dimensional drawing portraitPanel mounted socket 1474 PNG, 99 KB

Dimensional drawing landscape formatPanel mounted socket 1474 PNG, 100 KB

Directives

Panel mounted socket 1474
