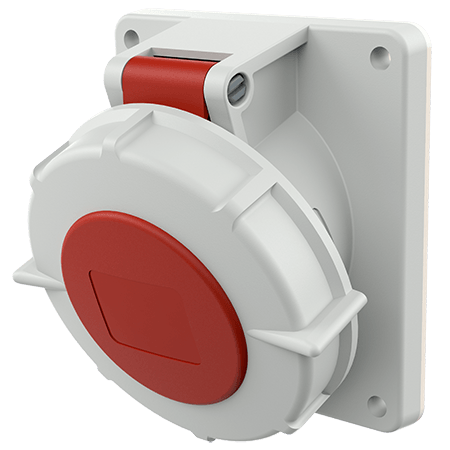

MENNEKES Panel mounted socket 1479

Panel mounted socket 1479

Ampere 16 A 32 A
  • screw terminals
  • 20° inclination
  • Part no.1479
  • EAN4015394011378
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1479

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 203 g
Certifications CQC
CB Zertifikat
VDE

Datasheets & Downloads

Panel mounted socket 1479

Product infoPanel mounted socket 1479 PDF, 157 KB
Manufacturer‘s declarationPanel mounted socket 1479 PDF, 37 KB
CAD data STPPanel mounted socket 1479 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket 1479 ZIP, 2 MB
Mounting instructionsPanel mounted socket 1479 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1479 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted socket 1479 PNG, 100 KB

Directives

Panel mounted socket 1479

REACh
RoHS
