MENNEKES Panel mounted socket 1485
MENNEKES Panel mounted socket 1485 images3d

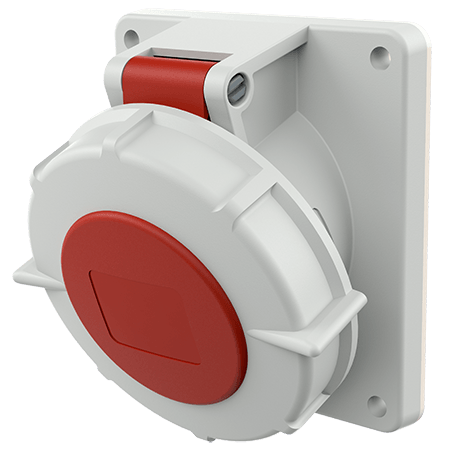

Panel mounted socket 1485

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1485
  • EAN4015394011460
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1485

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 237 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 1485

Product infoPanel mounted socket 1485 PDF, 157 KB
Manufacturer‘s declarationPanel mounted socket 1485 PDF, 37 KB
CAD data STPPanel mounted socket 1485 ZIP, 1,002 KB
CAD data 3D DWGPanel mounted socket 1485 ZIP, 2 MB
Mounting instructionsPanel mounted socket 1485 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1485 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted socket 1485 PNG, 100 KB

Directives

Panel mounted socket 1485

REACh
RoHS
