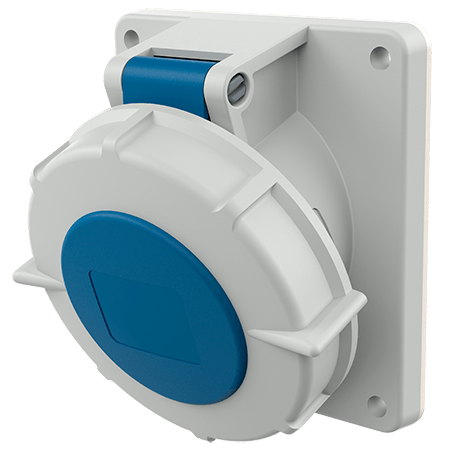

MENNEKES Panel mounted socket 1490

Panel mounted socket 1490

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.1490
  • EAN4015394011521
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1490

Ampere 32 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 334 g

Datasheets & Downloads

Panel mounted socket 1490

Product infoPanel mounted socket 1490 PDF, 189 KB
Dimensional drawing portraitPanel mounted socket 1490 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted socket 1490 PNG, 100 KB

Directives

Panel mounted socket 1490

REACh
RoHS
