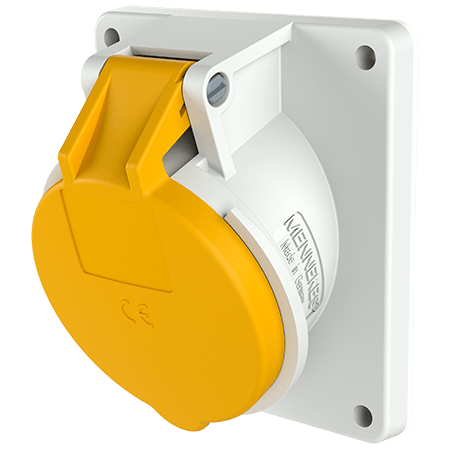

MENNEKES Panel mounted socket 1491

Panel mounted socket 1491

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
20° inclination

sockets optional fitted with auxiliary contact

Part no.1491
EAN4015394011538
Std. Pack. 10

Technical specifications

Panel mounted socket 1491

Ampere	32 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	100x92 mm
Fixing hole	85x77 mm
Inclination	20 °
Weight	236 g
Certifications	EAC

Dimensional drawing landscape format

Datasheets & Downloads

Panel mounted socket 1491

Product infoPanel mounted socket 1491 PDF, 122 KB

Mounting instructionsPanel mounted socket 1491 PDF, 128 KB

Dimensional drawing portraitPanel mounted socket 1491 PNG, 49 KB

Dimensional drawing landscape formatPanel mounted socket 1491 PNG, 49 KB

Directives

Panel mounted socket 1491
