Show all Panel mounted sockets / Show all Panel mounted socket

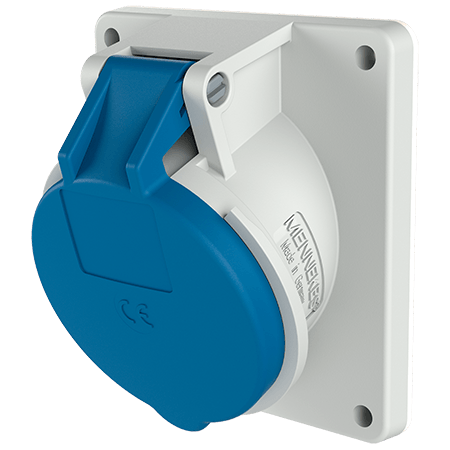

MENNEKES Panel mounted socket 1499

Panel mounted socket 1499

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.1499
  • EAN4015394011613
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1499

Ampere 32 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 288 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 1499

Product infoPanel mounted socket 1499 PDF, 128 KB
Mounting instructionsPanel mounted socket 1499 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1499 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted socket 1499 PNG, 49 KB

Directives

Panel mounted socket 1499

REACh
RoHS
