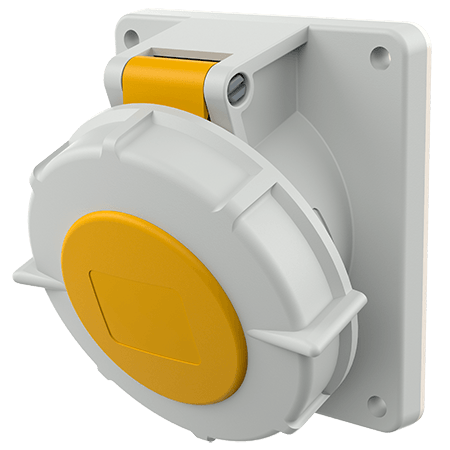

MENNEKES Panel mounted socket 1501

Panel mounted socket 1501

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.1501
  • EAN4015394011668
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1501

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 281 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 1501

Product infoPanel mounted socket 1501 PDF, 154 KB
Manufacturer‘s declarationPanel mounted socket 1501 PDF, 54 KB
Mounting instructionsPanel mounted socket 1501 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1501 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted socket 1501 PNG, 100 KB

Directives

Panel mounted socket 1501

REACh
RoHS
