Show all Panel mounted sockets
/
Show all Panel mounted socket

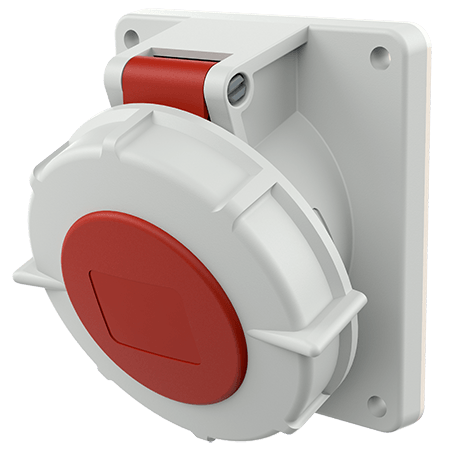

Panel mounted socket 1503
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
20° inclination
sockets optional fitted with auxiliary contact
Part no.
1503
EAN
4015394011682
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 1503
Ampere
32 A
Poles
3 p
Voltage
400 V
Clock position
9 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
281 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 1503
Product info
Panel mounted socket 1503
PDF, 184 KB
Dimensional drawing portrait
Panel mounted socket 1503
PNG, 99 KB
Dimensional drawing landscape format
Panel mounted socket 1503
PNG, 100 KB
Directives
Panel mounted socket 1503
REACh
RoHS
