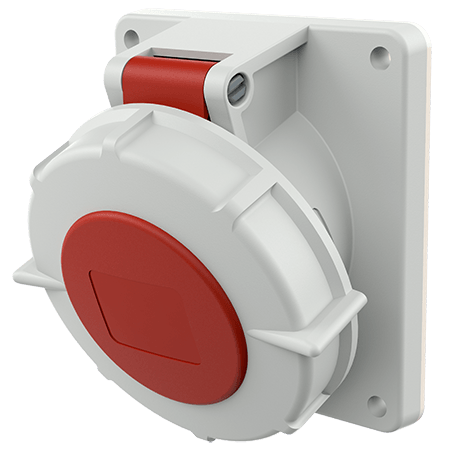

MENNEKES Panel mounted socket 1506

Panel mounted socket 1506

Ampere 16 A 32 A
  • screw terminals
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.1506
  • EAN4015394011729
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1506

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 291 g
Certifications CQC
VDE
CB Zertifikat

Datasheets & Downloads

Panel mounted socket 1506

Product infoPanel mounted socket 1506 PDF, 157 KB
Manufacturer‘s declarationPanel mounted socket 1506 PDF, 37 KB
CAD data STPPanel mounted socket 1506 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket 1506 ZIP, 2 MB
Mounting instructionsPanel mounted socket 1506 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1506 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted socket 1506 PNG, 100 KB

Directives

Panel mounted socket 1506

REACh
RoHS

Appropriate products

Panel mounted socket 1506 with IP67

MENNEKES Plug PowerTOP® Xtra with ErgoCONTACT 13627

Plug PowerTOP® Xtra with ErgoCONTACT

Part no. 13627

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT®
more

Appropriate accessories

Panel mounted socket 1506

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted sockets 16A and 32A

more
