Show all Panel mounted sockets
/
Show all Panel mounted socket

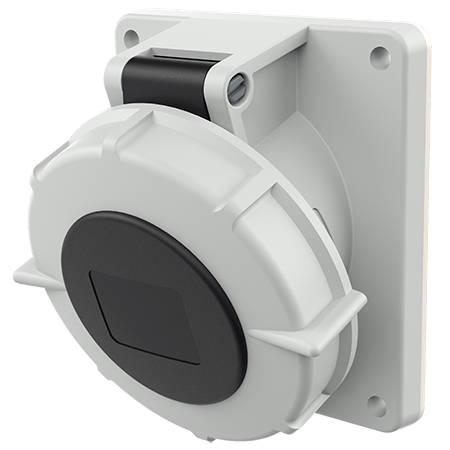

Panel mounted socket 1507
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
20° inclination
sockets optional fitted with auxiliary contact
Part no.
1507
EAN
4015394011743
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 1507
Ampere
32 A
Poles
4 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
291 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 1507
Product info
Panel mounted socket 1507
PDF, 198 KB
Dimensional drawing portrait
Panel mounted socket 1507
PNG, 99 KB
Dimensional drawing landscape format
Panel mounted socket 1507
PNG, 100 KB
Directives
Panel mounted socket 1507
REACh
RoHS
