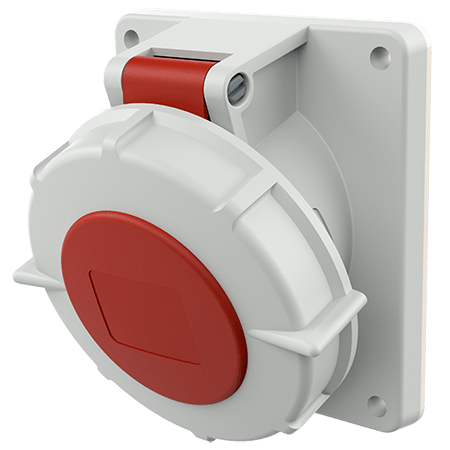

MENNEKES Panel mounted socket 1551

Panel mounted socket 1551

Ampere 16 A 32 A
  • screw terminals
  • 20° inclination
  • sockets optional fitted with auxiliary contact
  • Part no.1551
  • EAN4015394012153
  • Std. Pack. 10

Technical specifications

Panel mounted socket 1551

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 334 g
Certifications CQC
VDE
CB Zertifikat

Datasheets & Downloads

Panel mounted socket 1551

Product infoPanel mounted socket 1551 PDF, 157 KB
Manufacturer‘s declarationPanel mounted socket 1551 PDF, 37 KB
CAD data STPPanel mounted socket 1551 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket 1551 ZIP, 2 MB
Mounting instructionsPanel mounted socket 1551 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 1551 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted socket 1551 PNG, 100 KB

Directives

Panel mounted socket 1551

REACh
RoHS
