MENNEKES Panel mounted socket 20146A

MENNEKES Panel mounted socket 20146A images3d

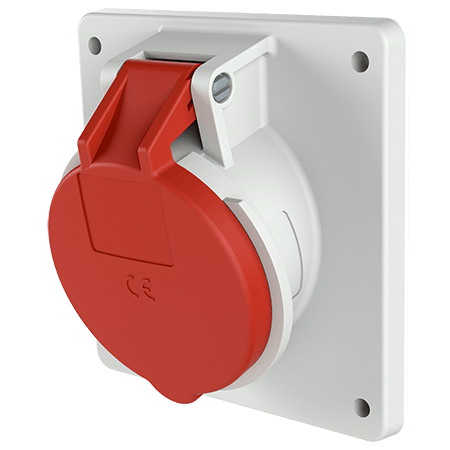

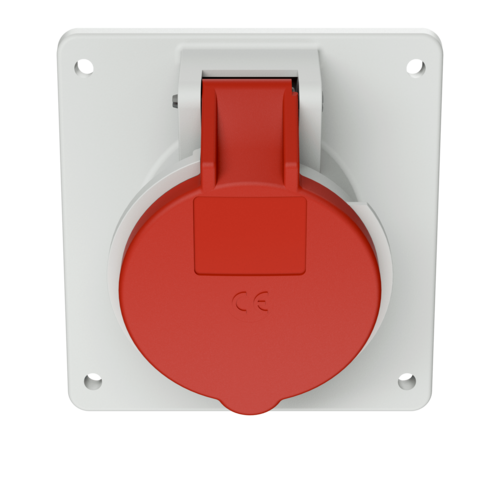

Panel mounted socket 20146A

Ampere 16 A 32 A 63 A

Poles

Voltage

Clock position

screw terminals
standard flange dimensions

uniform fixing hole spacing
15° inclination

Part no.20146A
EAN4015394176992
Std. Pack. 10

Technical specifications

Panel mounted socket 20146A

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	110x106 mm
Fixing hole	90x90 mm
Inclination	20 °
Weight	234 g
Certifications	EAC
