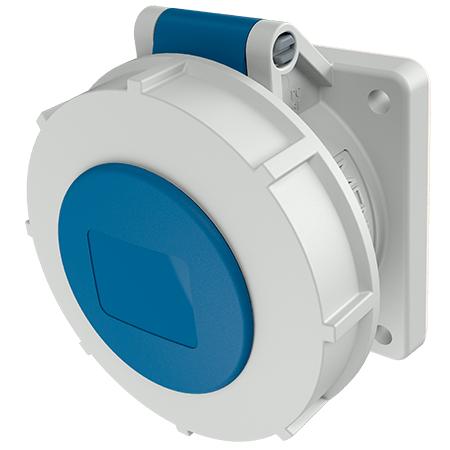

Panel mounted socket 233A

Name: Panel mounted socket
Brand: MENNEKES
SKU: 233A

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals

straight

Part no.233A
EAN4015394001287
Std. Pack. 10

Technical specifications

Panel mounted socket 233A

Ampere	32 A
Poles	4 p
Voltage	230 V
Clock position	9 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Flange	85x75 mm
Fixing hole	60x60 mm
Weight	293 g
Certifications	CQC VDE CB Zertifikat

Datasheets & Downloads

Panel mounted socket 233A

Product infoPanel mounted socket 233A PDF, 129 KB

Mounting instructionsPanel mounted socket 233A PDF, 128 KB

Dimensional drawing portraitPanel mounted socket 233A PNG, 48 KB

Dimensional drawing landscape formatPanel mounted socket 233A PNG, 48 KB

Directives

Panel mounted socket 233A

REACh

RoHS

Appropriate accessories

Panel mounted socket 233A

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136
