Show all Panel mounted sockets
/
Show all Panel mounted socket

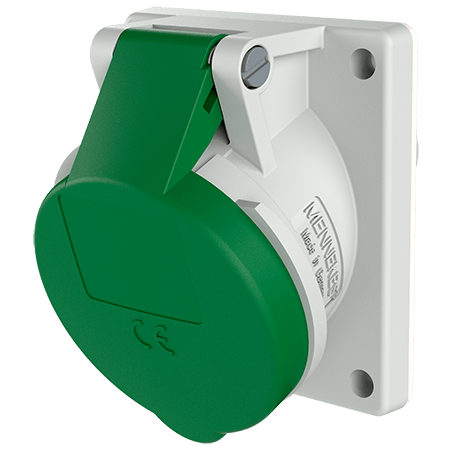

Panel mounted socket 3186
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
20° inclination
Part no.
3186
EAN
4015394018018
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 3186
Ampere
16 A
Poles
3 p
Voltage
50-500 V
Clock position
10 h
Hertz
100-300 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
73.5x64 mm
Fixing hole
60x52 mm
Inclination
20 °
Weight
132 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 3186
Product info
Panel mounted socket 3186
PDF, 130 KB
Mounting instructions
Panel mounted socket 3186
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 3186
PNG, 49 KB
Dimensional drawing landscape format
Panel mounted socket 3186
PNG, 49 KB
Directives
Panel mounted socket 3186
REACh
RoHS
