Show all Panel mounted sockets
/
Show all Panel mounted socket

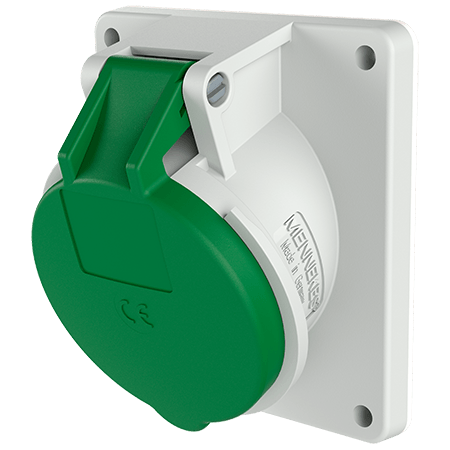

Panel mounted socket 3189
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
20° inclination
Part no.
3189
EAN
4015394018049
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 3189
Ampere
16 A
Poles
5 p
Voltage
50-500 V
Clock position
10 h
Hertz
100-300 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
204 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 3189
Product info
Panel mounted socket 3189
PDF, 129 KB
Mounting instructions
Panel mounted socket 3189
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 3189
PNG, 49 KB
Dimensional drawing landscape format
Panel mounted socket 3189
PNG, 49 KB
Directives
Panel mounted socket 3189
REACh
RoHS
