Show all Panel mounted sockets
/
Show all Panel mounted socket

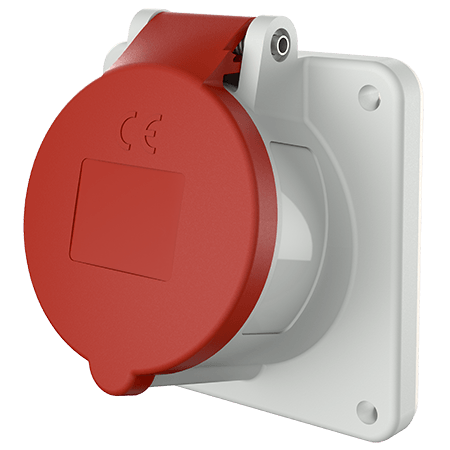

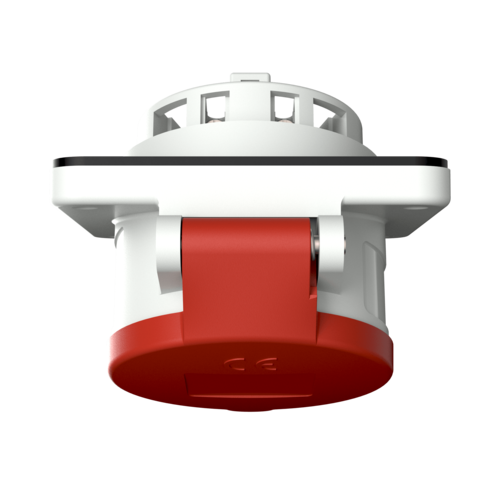

Panel mounted socket 1294
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
Clock position
6 h
9 h
screw terminals
for horizontal installation
15° inclination
Part no.
1294
EAN
4015394009320
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted socket 1294
Ampere
32 A
Poles
5 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
15 °
Weight
251 g
Certifications
EAC
Datasheets & Downloads
Panel mounted socket 1294
Product info
Panel mounted socket 1294
PDF, 155 KB
Manufacturer‘s declaration
Panel mounted socket 1294
PDF, 89 KB
CAD data STP
Panel mounted socket 1294
ZIP, 134 KB
CAD data 3D DWG
Panel mounted socket 1294
ZIP, 555 KB
Mounting instructions
Panel mounted socket 1294
PDF, 128 KB
Dimensional drawing portrait
Panel mounted socket 1294
PNG, 101 KB
Dimensional drawing landscape format
Panel mounted socket 1294
PNG, 101 KB
Directives
Panel mounted socket 1294
REACh
RoHS
