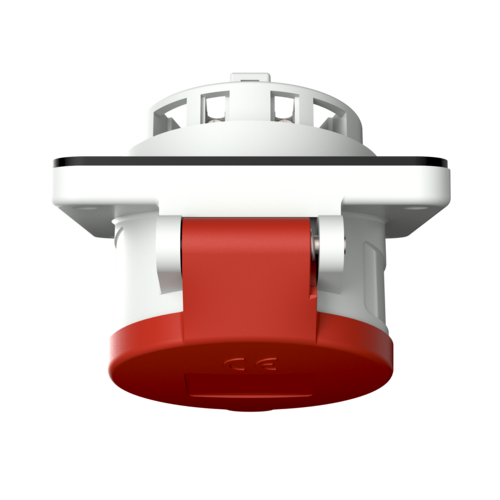

MENNEKES Panel mounted socket 1285
MENNEKES Panel mounted socket 1285 images3d

Panel mounted socket 1285

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • 15° inclination
  • Part no.1285
  • EAN4015394009245
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1285

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 15 °
Weight 169 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 1285

Product infoPanel mounted socket 1285 PDF, 155 KB
CAD data STPPanel mounted socket 1285 ZIP, 229 KB
CAD data 3D DWGPanel mounted socket 1285 ZIP, 788 KB
Dimensional drawing portraitPanel mounted socket 1285 PNG, 101 KB
Dimensional drawing landscape formatPanel mounted socket 1285 PNG, 101 KB

Directives

Panel mounted socket 1285

REACh
RoHS
