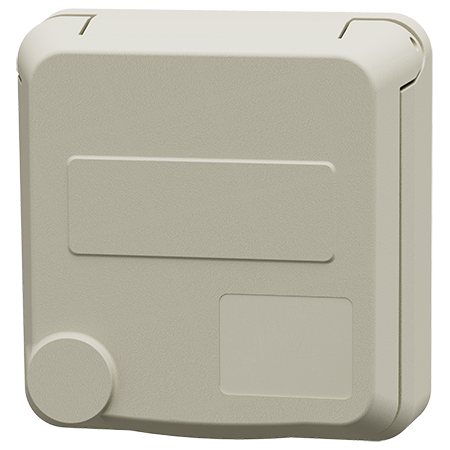

MENNEKES Cepex panel mounted socket SCHUKO®, pearl white 4571

Cepex panel mounted socket SCHUKO®, pearl white 4571

Available from 01/07/2026
Ampere 16 A
  • screw terminals
  • also suitable for installation in cable ducts and columns
  • Part no.4571
  • EAN4015394315445
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted socket SCHUKO®, pearl white 4571

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Hertz 50-60 Hz
Protection type IP54
Shutter No
Weight 169 g

Datasheets & Downloads

Cepex panel mounted socket SCHUKO®, pearl white 4571

Product infoCepex panel mounted socket SCHUKO®, pearl white 4571 PDF, 367 KB
Dimensional drawing portraitCepex panel mounted socket SCHUKO®, pearl white 4571 PNG, 41 KB
Dimensional drawing landscape formatCepex panel mounted socket SCHUKO®, pearl white 4571 PNG, 123 KB

Directives

Cepex panel mounted socket SCHUKO®, pearl white 4571

REACh
RoHS

Appropriate products

Cepex panel mounted socket SCHUKO®, pearl white 4571 with IP54
